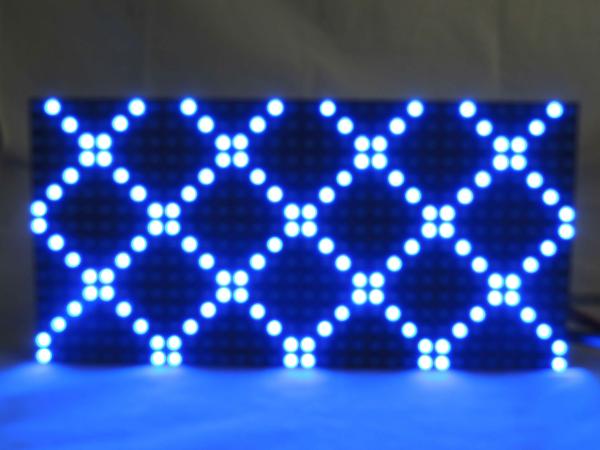

Electronic Message Boards LED Module Panel , Outdoor LED Display
Module
Module parameter
| P10 Outdoor Single Color LED Module |
| Item | Unit | Parameter |
| Pixel Pitch | mm | 10 |
| Pixel Density | dots/sqm | 10,000 |
| Resolution of Module | dots | 32*16 |
| Module Size | mm | 320x160 |
| HUB | | 12 |
| Led Package | DIP Oval 546 lamp |
| Pixel Configuration | 1B |
| Chip Brand of LEDs | Epistar |
| Module Weight | kgs/pc | 0.6KG |
| Brightness (White Balance) | nits(cd/sq.m) | 2000--10000 |
| Red Wavelength | nm | 620-625 |
| Green Wavelength | nm | 520-525 |
| Blue Wavelength | nm | 470-475 |
| Scan Mode | 1/4 Scan |
| View Distance | M | 5-100 |
| Best View Distance | M | 12-33 |
| Viewing Angle-Horizontal | deg. | 80 |
| Viewing Angle-Vertical | deg. | 60 |
| Module Maximum Power | W | <20 |
| Max. Power Consumption | W/sq.m | 400 |
| Avg. Power Consumption | W/sq.m | 100-200 |
| Working Voltage | 40A 5V |
| Power Supply | AC 110/220V |
| Waterproof Grade | IP65 |
| Refresh Rate | Hz/S | ≥ 120 |
| Frame Rate | Hz/S | ≥ 60 |
| Gray Scale | 4096 grades gray |
| Display Color | 256 |
| Display Function | Text,news,advertising,flash,animation |
| |
Our services
1. Your inquiry related to our products or price will be replied in
24hrs
2. OEM&ODM,any your customized lightings we can help you to
design and put into product
3. Distributoership are offered for your unique design and some our
current models
4. Protection of your sales area,ideas of design and all your
private information
5. Top Quality+Reasonable Price+Responsible After
Service=Successful & Win
FAQ
•Q1: When is the delivery time?
•A1: we will accomplish manufacturing within 15 days after
receiving the deposit.
•Q2: What is the payment method?
•A2: We support a variety of payment methods, the most common is
the TT.
•Q3: What's the pixel pitch for Outdoor LED Display Screen?
•A3: Outdoor (P6mm / P8mm/P10mm)
•Q5: Can it play HD video?
•A5: Yes, it can realize HD video function with Linsn controlling
system.
•Q7: How about the size of project?
•A7: Please offer the size with "width by height" of project. We
will offer the suitable solution for your project size
•Q8: How about your service?
•1. Lifetime free maintenance and upgrade.
•2. Complaint respond period not exceed 24 hours; maintenance
guidance and problem solution supplied in 48 hours.
•3. Customer satisfaction tracking report.
•4. Free technician training.
•5. Full set of documents free of charge, which including
installation guidance, software operation manual, easy maintenance
manual and control system software CD and so on.
•6. Special service for big project, such as stadium, exhibitions,
squares and so on.
