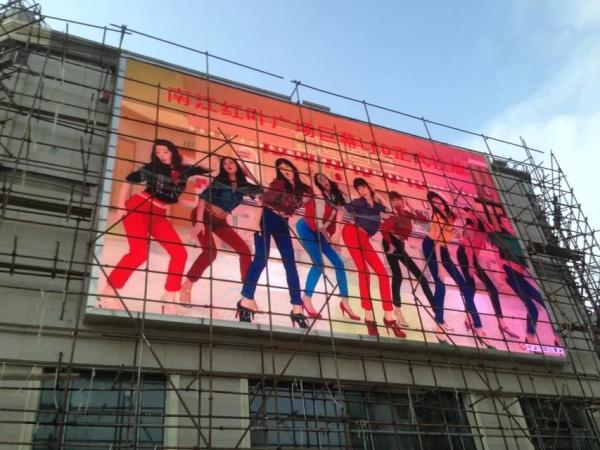

    High Definition Street Outdoor Video Wall P10 LED Panel , LED Digital Signs Outdoor

    Ask Lasest Price
    Brand Name : Jinhe
    Model Number : P10
    Certification : CE/ROHS/FCC
    Price : Negotiable
    Payment Terms : T/T, Western Union
    Supply Ability : 2,000 square meters per month
    Delivery Time : 15 working days after receipt of deposit
    • Product Details
    • Company Profile

    High Definition Street Outdoor Video Wall P10 LED Panel , LED Digital Signs Outdoor

    High Definition Street Outdoor Video Wall P10 LED Panel , LED Digital Signs Outdoor

    1) High definition and high brightness;

    2) Long durability and high reliability;

    3) Advance video control system and Super input system;

    4) Low maintenance cost ;

    5) Vividly display;

    6) Wide viewing angle;

    7) Easy installation and maintenance;


    Specification

    configureSpecificationParameter
    PixelDot Pitch10mm
    Pixel Configure1R1G1B
    Pixel/SQM10000Pixel/m²
    LED LampLED TYPEDIP346
    Chip BrandEPISTAR
    Wavelength & BrightnessRed:620-622.5nm;>900mcdGreen:520-522.5nm;>1800mcd Blue:465-467.5nm;>300mcd
    ModuleModule Resolution32Pixel * 16Pixel
    Drive ModeConstant Current Drive
    Scanning Method1/2 Scanning
    Module Dimension320mm(Width)x160mm(Height)
    Drive ICMBI5024(Or other Similar IC)
    LED & Drive CompositionLight-Drive Separation
    Refresh Rate>2400HZ
    CabinetCabinet Thickness79.5mm
    Cabinet ConstructionNormal Standard Cabinet
    Cabinet AssemblyConnecting Sheet
    Cabinet Color(Front/Back)Anodized Blue
    Aviation Plugwp20
    Maintenance ModeBack Maintenance
    Cabinet MaterialAluminium
    Cabinet Dimension640X640X79.5mm
    Power SupplyChina Power Supply
    LED ScreenViewing AngleHorizontal : 110±10°Vertical: 60±10°
    Brightness>7500cd/m²
    Best Viewing Distance10~50m
    LED Life100,000Hours
    Maximum Power750w/m²
    Average Power300w/m²
    Input Voltage220V±10% Or 110V±10%
    Operation EnvironmentTemperature: —20°C~60°C; Humidity: 10%~95%
    Protection GradeIP 65
    LED Screen Weight38kg/m2



    Warranty
    1. We guarantee all our display, modules, spare parts (Silan Chip) for TWO years.

    2. We provide technology training for free, which contains the operation and maintenance training of the LED screens in factory.

    3. After warranty , we also can offer you the parts for replacement at our bottom price.

    4. After sales, if you have any problem about our product, you can inform us by Email, we will reply you at once when we get it and offer you a good solution to solve the problem.

    5. We also could solve problems for you until it recovers well by remote control!

    Delivery Time:
    1. Delivery time: Accomplish manufacturing within 25 days after receiving the deposit.

    2. Before delivery, we will test the display, and keep it light up for 72 hours, and check all the parts of the display to confirm it is Ok for delivery.

    Installation :
    1. We can assist the training and technical support for the customer in the factory, if the customer requires so.

    2. We could send our engineer to guide the installation for you. But the relevant cost should be paid by your esteemed company.

    3. Our technicians will offer CAD Drawing to show how to install the LED Display rightly and fast, of course, if you need.


    FAQ


    1. May I know the Minimum order for your products:
    For our products, no limit for the size of the led displays, but generallay speaking, for one p10 outdoor full color dip module led display screen the dots more than 50000 dots will be clear for the audience to see the video on the screen.

    2. What's the difference of DIP(1R1G1B) and DIP(One LED, 3 in 1) ?
    DIP(One LED, 3 in 1) p10 outdoor full color dip module led display, one pixel has one LED lamp, 3 led chips in one LED Lamp;
    Traditional DIP( 1R1G1B) use 3 LED Lamp in one pixel.
    DIP(One LED), reduced the LED Lamp on the screens, it reduced grainy of the screen, and improve the uniform of the surface of the led displays, this will make the led display has a more wide viewing angle and smooth image.

    Keeps the high brightness for outdoor advertising.
    Becuase it adopted advanced technology of DIP and SMD, so it can keep the high brightness of the screen. Much high brightness than SMD Screens.

    3. How long time I can get the cargos?
    Our production time is about 15~ 18 working days;
    When we confirmed the order, after we get your deposit, we can start production, we will update the production details in time; Before finish, we will notice you and after we get full payment, we can delivery the goods to you.
    About the time from start port to destination, that depends on the distance and the state of the sea company or airport company.

    4. May I know the package details?
    For our product, generally we can provide you package by Plywood case or Flight case.
    Generally speaking, for outdoor fixed, we use plywoode case, 2 cabinets in one case; For rental market, we suggest you use flight case, generally 6 or 8 cabinets in one case.
