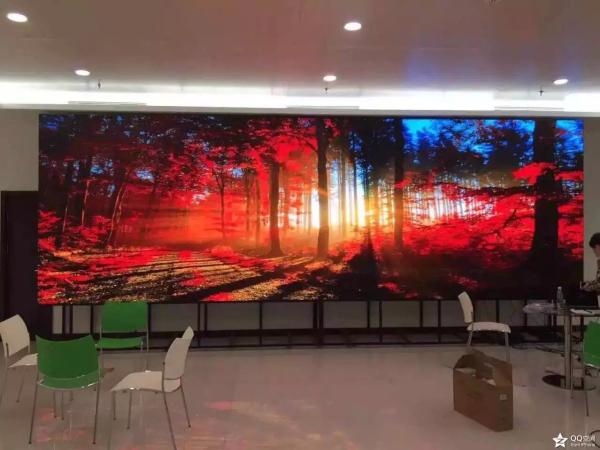

IP21 Indoor Advertising LED Display Board P5 Rental Iron cabinet
Cabinet Details:
1) 5mm Pixel pitch, SMD3528, 40000 dots/sqm;
2) Size : 640mm*640mm;
3) No tools needed, 10 seconds installation or dismantling;
4) 4 quick locks with locating pins, stable to plug the adjacent
cabinets;
5) IP65 outdoor usage, high brightness, good heat dissipation.
Outdoor P5 SMD Parameter
|
Pixel pitch(mm):5mm
| Gray Scale:>4096 |
Physical density(Dot/m2):40000
| Color(M):16.7 |
Control Method:synchronization
| Refresh Frequency(Hz):>1200 |
Pixel Configuration:1R1G1B
| Frame Frequency(Hz):60 |
LED Encapsulation:SMD3528
| Brightness adjustment(Level):256 |
Module size(mm*mm):160*160
| Power Supply Input Voltage:AC90V ~230V |
| Pixel array :32*32 | Power Supply Input Frequency(Hz):50/60 |
Drive Method:Constant current Scan
| Module Max consumption(W):24W |
Scanning:1/4 Scan
| Screen Max Consumption:1000W |
Horizontal(Deg):140
| Screen Average Consumption:400W |
Vertical(Deg):140
| IP rating: IP65 |
Cabinet Size(mm):640mm*640mm
| Working Temperature(℃):-20 ~ +40 |
Thickness(mm):62
| Working Humidity(RH):10%~90% |
Cabinet Resolution:108*108
| Storage Temperature(℃):-40~ +80 |
Cabinet Material:Iron/Aluminum
| Storage Humidity(RH):10%~90% |
Screen Brightness(cd/m2):6500
| Life(H):50,000 |
Description:
1) Cabinet size & weight: 640*640mm, 14kg, easy to transport and
install, few labor needed;
2) Pitch 5mm, pixel density 40000 dots/sqm;
3) 10 Seconds without tools installation: only 10 seconds to install
or dismantle by quick connect lock and plug & play design, no tools
needed;
4) 3 Highs: high gray scale, high refresh, high contrast, with vivid
display effect;
5) 4 Lows: low power consumption, low noise created, low
transportation cost and low installation cost;
6) Exellent precision: Die-cast aluminum cabinet, the gap between
each two cabinets is less than 0.3mm, the flatness is less than
0.1mm;
7) Various applications: suit for hanging up, piling and fixing
installation. Usage: outdoor information publish, outdoor
advertising, etc.;
8) 2 Wides: wide compatiblity and wide viewing angle. Models with
different pixel pitches are compatible in one led display,
horizontal view angle is 150 deg. and vertical 60 deg.;
9) 2 aging tests: 48 hours for led module test and 72 hours for led
screen test to ensure the perfect quality.
10) IP65: high protection rate, waterproof IP65.
11) -20~60 degree temperature available. Very good heat dissipation.
Jinhe after services:
• Telephone investigation: our after-sales team will phone the user
every month during the warranty period to follow up the working
condition of the products, and to discover and solve problems, if
necessary.
• Free guarantee repair (including labor and material); free repair
service during the quality warranty period and reasonable charge
for spare parts and maintaining service after the quality warranty
period. We will never exempt our responsibilities on product owned
defects.
• Responding time: upon receiving user’s notification, we ensure
24-hour after-sales technical support.
• Spare parts: necessary spare parts are provided together with
products to customers.
• Free technical training: integrative and normative technology
training is available for free to customers by our technical
personnel to ensure they are skilled in regular operations of
hardware and software of products and they are able to estimate and
solve small problems.
• Software upgrade: lifelong maintenance of controlling system,
incessant improvement of the system functions and continuous
software upgrades.
• Site instruction service of installation is available.
