Waterproof Advertising outdoor full color led display Screen
Noiseless
Specifications:
1. Slim and light.
2. Easy for movement and installation.
3. High refresh rate and brightness.
4. How video in good quality.
Product Features:
1. color spots or picture shade will be removed through the
adjustment of brightness and color by each independent pixel.
2 . adopted with self developed steel structure and special kits
will be kept in good flatness and smoothness.
3 . strict water proof testing by Ip65.
4 . according to environmental changes the brightness can be
adjusted automatically for energy saving.
5 . special PVC kits are adopted to protect from corrosion according
to coastal weather.
6 . according to environmental changes the brightness can be
adjusted automatically for energy saving.
7 . auto power on/off, work unattended.

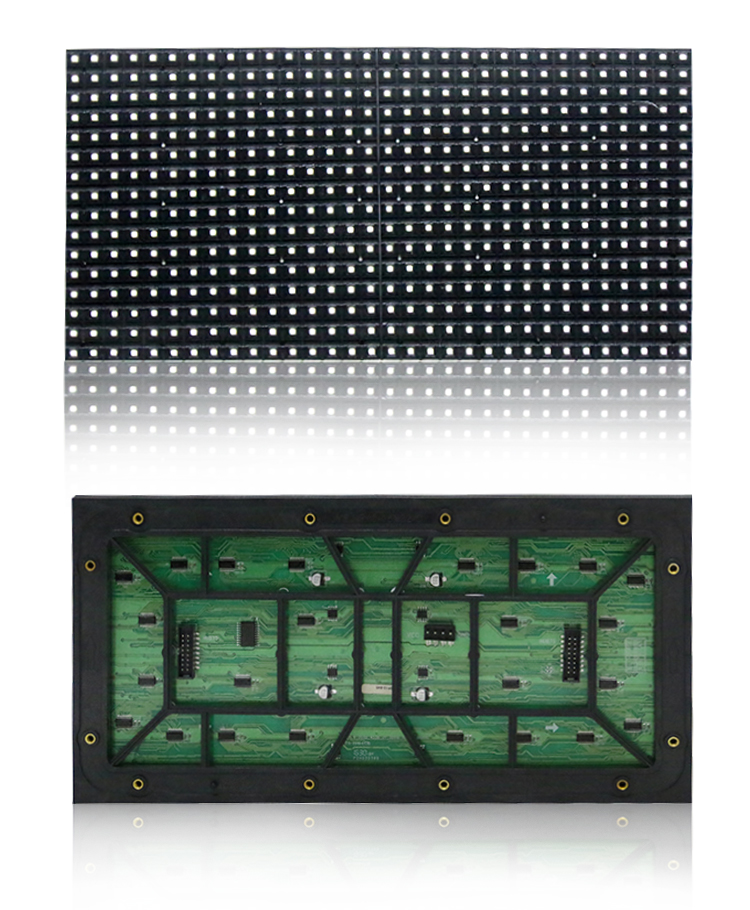

| ※Module Parameter |
| Technical parameters | UNIT | parameters Values |
| Pixel pitch | MM | 10 |
| Panel size | MM | L320XH160X15 |
| Physical density | /M2 | 10000Dots |
| Pixel configuration | R/G/B | 1,1,1 |
| Driving method | | Constant current 1/8scan |
| LED Encapsulation | SMD | 3528 |
| Display resolution | DOTS | 32X16=512 |
| Module weight | KG | 0.4 |
| Module port | | HUB75 |
| Module working voltage | VDC | 5 |
| Module consumption | W | 15 |
| ※Screen Paremeter |
| Viewing angle | Deg. | H120 V120 |
| Option distance | M | 10-60 |
| Driving device | | 2016/5020 |
| Every square metre module | PCS | 19.5 |
| Maximum power | W/ M2 | 300 |
| Frame Frequency | HZ | 60 |
| Refresh frequency | HZ | ≥1000 |
| Equilibrium brightness | CD/ M2 | ≥800 |
| Working environment temperature | 0C | -10~60 |
| Working environment humidity | RH | 10%～70% |
| Display working voltage | VAC | AC46～54HZ,220V±15%/110V±15% |
| Colour temperature | | 9500K-11500K |
| Gray scale/color | | ≥16.7M color |
| Input signal | | RF S-Video RGB etc |
| Control system | | Linsn control system |
| Mean free error time | HOURS | ＞5000 |
| Life | HOURS | 100000 |
| Lamp failure frequency | | ＜0.0001 |
| Antijam | | IEC801 |
| Safety | | GB4793 |
| Resist the electricity | | 1500V No breakdown |
| Steel box weight | KG/ M2 | 50(standard steel box) |
| IP rating | | The back IP40,The front IP50 |
| Steel box size | mm | L960XH960x100 |
FAQ
•Q1: When is the delivery time?
•A1: we will accomplish manufacturing within 15 days after receiving
the deposit.
•Q2: What is the payment method?
•A2: We support a variety of payment methods, the most common is the
TT.
•Q3: What's the pixel pitch for Outdoor LED Display Screen?
•A3: Indoor (P2.5mm / P3mm/P4mmP / P5mm/P6mm/P7.62mm/P10mm)
•Q5: Can it play HD video?
•A5: Yes, it can realize HD video function with Linsn controlling system.
•Q7: How about the size of project?
•A7: Please offer the size with "width by height" of project. We
will offer the suitable solution for your project size
•Q8: How about your service?
•1. Lifetime free maintenance and upgrade.
•2. Complaint respond period not exceed 24 hours; maintenance
guidance and problem solution supplied in 48 hours.
•3. Customer satisfaction tracking report.
•4. Free technician training.
•5. Full set of documents free of charge, which including
installation guidance, software operation manual, easy maintenance manual and control system software CD and so on.
•6. Special service for big project, such as stadium, exhibitions,
squares and so on.
Jinhe After Services:
We promise we provide 2 years warranty for free maintain for our
products and full life tracking service.
1. During the warranty period, we will repair the equipment free of
charge unconditionally if the problem is caused by product quality
or production and installation problem.
2. When the warranty expires. we continue to provide maintenance
service for whole life of the equipment with relative
service/material cost paid.
3. Updating software service is free of charge.
4. Quick respond and repair and help promised by sending
technicians to help test and repair on site within 36 hours after
customer’s request.
5. We will finish repairing within 5 days after defective equipment
sent back to us
• Site instruction service of installation is available.
Basic promise from Jinhe:
A: Full automatic production to control our high quality, best
color consistency and get better performance.
B: Energy saving, low power consumption and long lifespan 100,000
hours (about 10 years).
C: We guarantee that the equipment we provide are brand new,
complete and unused.
D: Good heat dissipation capability and high waterproof because of
the unique design of vent fan (like shutter).
E: Our quality control throughout every process from
materials-production- test-package-delivery
